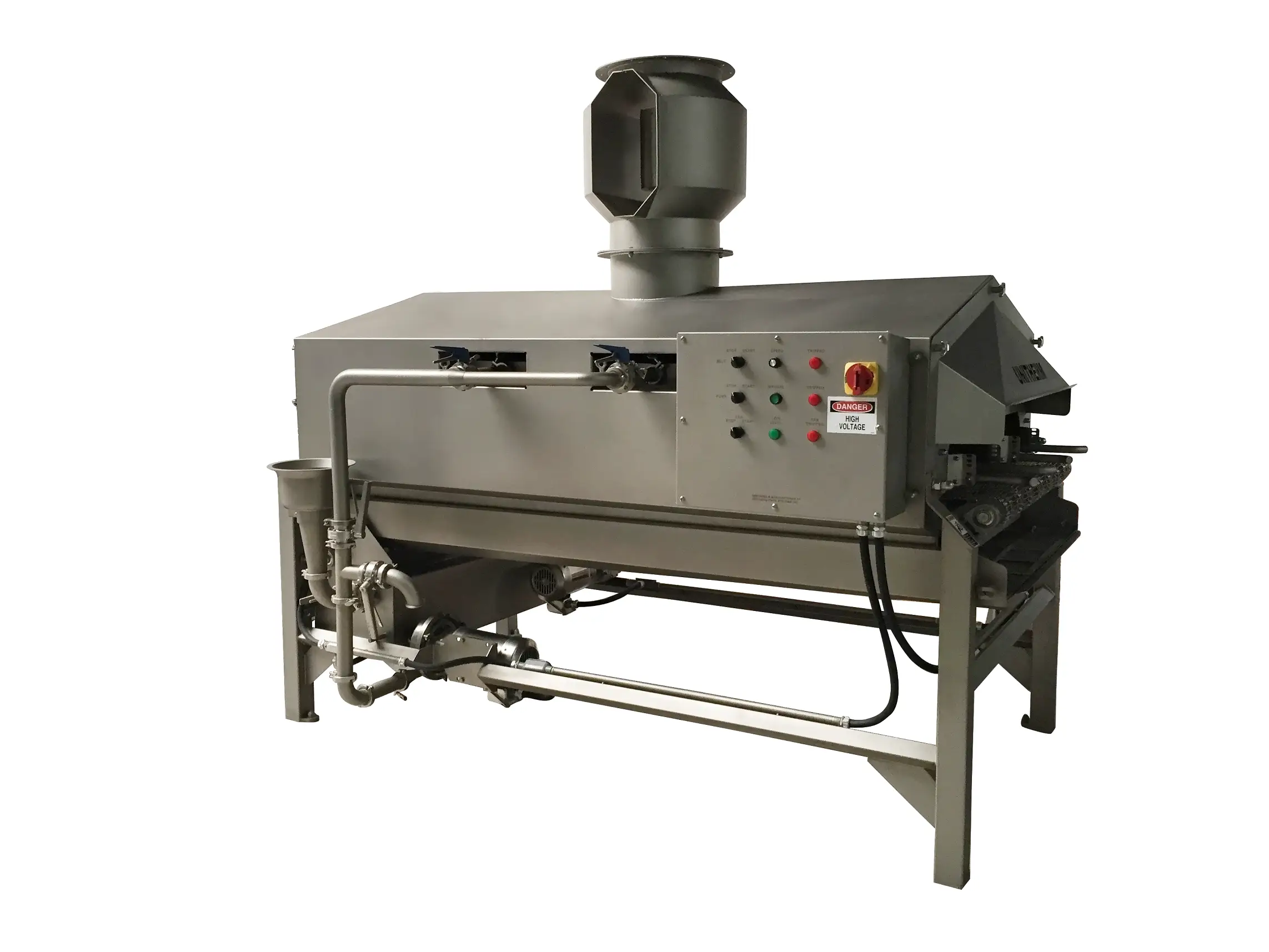

Afoheat™ Liquid Smoke Applicator – 40-inch
The CircFood Afoheat™ 40-in Liquid Smoke Applicator is ideal for processors with capacity needs ranging from 12-25 pieces / minute. This liquid smoke applicator utilizes both waterfall and drenching technology to completely encompass the product as it travels through the tunnel. It includes flexibility across product applications which allows producers to use this system for application of various ingredients whether it be liquid smoke, caramel coating, seasoning, etc.
When paired with our infrared roasters, this line smokes, browns, and pasteurizes deli meats.
- Product Family: Afoheat™ Liquid Smoke Applicators
Features
- Utilizes both waterfall and trenching technologies to completely encompass the product as it travels through the tunnel
- Flexibility across product applications allows producers to use this system for application of various ingredients whether it be liquid smoke, caramel coating, seasoning, etc
- The liquid is captured and recycled throughout the process to reduce ingredient waste
- An easy-to-use analog interface allows users to adjust the speed of the belt
- Can be used as a standalone unit for simple coating or integrated into a processing line, when paired with the Infrared Pasteurizer the line offers unparalleled results in smoking and browning while simultaneously achieving over a 3.0 log reduction in Listeria Monocytogenes
- Continuous belt wash
- Fully insulated housing
- 304, 14-gauge construction
- Stainless steel belt, drives, shafts, motors
- Manufactured and designed in USA
- AMI sanitary design approved
- CE Compliant
Optional Features:
- Infeed or outfeed belt extension
Specs
Dimensions: 5.73’ (1.74 m) wide x 8.6’ (2.62 m) long x 5.82’ (1.77 m) tall, excluding fan
Belt Width: 40″
Capacity: 12-25 pieces / minute
Eletrical Utility Requirements: USA: 480 VAC, 3 Ph, 25 Amp, 60 Hz
