Aquaflow Water Chiller
CircFood’s Aquaflow can be used as a continuous chilling solution for packaged food products. The design is engineered to achieve critical chilling targets using a combination of water volume, movement, and recirculation. Our Aquaflow provides an efficient solution for a variety of pouches to bagged soups, post-pasteurized hot dogs, and more. A shower drench provides chilled water to the product that floats and a sparging manifold efficiently delivers fresh chilled water directly to the product flights helping to reduce residence time and increase throughput capacity.
OurSingle-Tank Mini Aquaflow Water Chilleris the most popular machine for water chilling. Alternatively, it can be used for sous vide cook-chill applications.

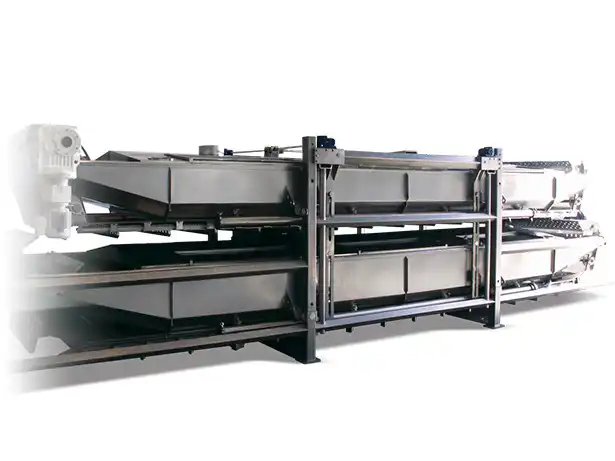

OurDouble-Zone Aquaflow Water Chillerprovides fast, efficient chilling for a variety of applications and features the capability to chill or cook-chill. With independent zones and times, this machine has the flexibility to meet the needs of any chilling application within a small footprint.
Our largest, most flexible water chiller, theTriple-Zone Aquaflow Water Chillercan be used for chill-only or cook-chill applications. With a capacity of up to 10,000 lbs per hour, this machine can handle even the largest loads, while still chilling the product quickly and effectively.
- Product Family: Sous Vide Water Cooking & Chilling
Features
- Water immersion transfers heat about 24 times faster than air.
- Direct steam injection is used for efficient heating.
- Independently controlled tanks reduce footprint and improve product quality.
- Flighted belt design gently conveys product reducing risk of product degradation.
- Sparging manifold releases energy directly to product flights. A shower drench can be used for products that float.
- Multiple probes are used to control water temperature to +/- one degree.
- Hygienic design with inline filtration and easy access for cleaning.
- Ewon for remote monitoring, login for maintenance, and data logging capabilities for the ever-evolving IIoT and Industry 4.0.
- No-leak Patented sealed electrical boxes withstand 1350 PSI direct spray to edge of silicone seal.
- Sous vide cook, blanch, water cook, pasteurize and chill
- Custom-designed and built to your available footprint
- Recipe driven with residence time from 60 seconds to over 6 hours
- Hot water heating up to 203°F (95°C) Cold water chilling to 33°F (0°C)
- Cook-in-bag or loose such as diced potatoes and other starches
- Fresh water rinse option on exit for starch applications
- Eliminates double handling and heating
Specs
Single-Tank Mini Aquaflow Water Chiller Specs:
- Dimensions: 7.58 ft (2.31 m) W x 18.42 ft (5.61 m) L x 6 ft (1.83 m) H
- Belt width: 40-in (1000 mm) W
- Capacity: 100 – 2,000 lbs (45 – 900 kg) per hour dependent upon application
Double-Zone Aquaflow Water Chiller Specs:
- Dimensions: 10.92 ft (3.33 m) W x 28.83 ft (8.78 m) L x 10 ft (3.05 m) H
- Belt width: 56-in (1422 m) W
- Capacity: 1,000 – 3,000 lbs (450 – 1350 kg) per hour dependent upon application
Triple-Zone Aquaflow Water Chiller Specs:
- Dimensions: 8.92 ft (2.72 m) W x 38.33 ft (11.68 m) L x 12.67 ft (3.86 m) H
- Belt width: 68” (1,700 mm) wide
- Capacity: 3,000 – 10,000 lbs (1,350 – 4,500 kg) per hour dependent upon application
