Aquaflow Water Pasteurizer
The CircFood Aquaflow Pasteurizers can be used as a continuous chilling solution for packaged food products. The design is engineered to achieve critical chilling targets using a combination of water volume, movement, and recirculation. Our Aquaflow provides an efficient solution for a variety of pouches to bagged soups, post-pasteurized hot dogs, and more. A shower drench provides chilled water to product that floats and a sparging manifold efficiently delivers fresh chilled water directly to the product flights helping to reduce residence time and increase throughput capacity.
TheMini Aquaflow Pasteurizercan handle a capacity of 500-2,000 lbs per hour and is the smallest of our Aquaflow Pasteurizers.

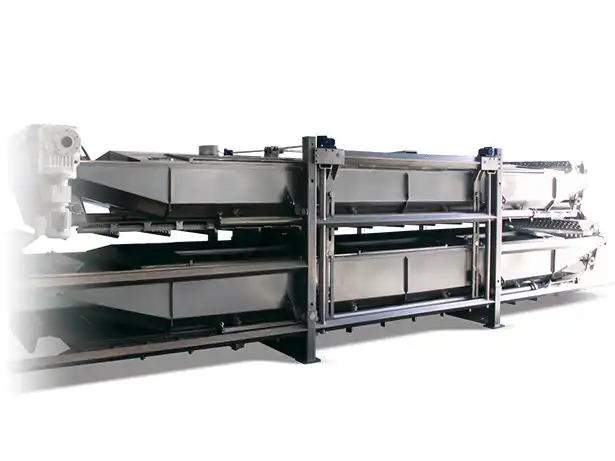

OurDouble-Zone Aquaflow Pasteurizerexpands both the capacity and the flexibility of your product line. This machine allows you to pasteurize two times the deli products as our Mini AquaFlow. Alternatively, you could use one tank for hot pasteurization and another tank to immediately cool the product. This increases efficiency and safety while decreasing handling.
OurTriple-Zone Aquaflow Pasteurizerprovides maximum capacity and flexibility for large processors. Similar to the Double-Zone AquaFlow, you can use all three tanks for heating or you can combine pasteurization and cooling into one continuous process. In any case, your products will be fully pasteurized in just 2 to 3 minutes, extending their shelf life and reducing your risk of a recall.
CircFood’s Aquaflow Water Pasteurizers are third-party validated as published in the American Journal of Food Protection* and designed for Ready-to-Eat Food Products by Submersion Heating for Reduction of Listeria monocytogenes. Our Aquaflow is USDA-FSIS Recognized Technology as a post-package surface pasteurization system**. CircFood’s control system and specially designed manifold provide uniform heat treatment for pasteurizing packaged products like hams and hot dogs. Using higher temperature regimens of 195° to 205°F (90.6 to 96.1 °C), reductions of L. monocytogenes (~2 log) within 2 to 4 min. Heat penetration affects only the outer 1 cm of product, and surface temperatures were equilibrated back to below 50°F (10°C) within a few minutes after submersion in a chill tank.
*Journal of Food Protection, Vol. 65, No.6, 2002, Pages 963-969
**Food Safety and Inspection Service New Technology Information Table Last Update October 2019
- Product Family: Post-package Pasteurization
Features
- Water immersion transfers heat about 24 times faster than air.
- Direct steam injection is used for efficient heating.
- Independently controlled tanks reduce footprint and improve product quality.
- Flighted belt design gently conveys product reducing risk of product degradation.
- Sparging manifold releases energy directly to product flights. A shower drench can be used for products that float.
- Multiple probes are used to control water temperature to +/- one degree.
- Hygienic design with inline filtration and easy access for cleaning.
- Ewon for remote monitoring, login for maintenance, and data logging capabilities for the ever-evolving IIoT and Industry 4.0.
- No-leak Patented sealed electrical boxes withstand 1350 PSI direct spray to edge of silicone seal.
- Sous vide cook, blanch, water cook, pasteurize and chill
- Custom designed and built to your available footprint
- Recipe driven with residence time from 60 seconds to over 6 hours
- Hot water heating up to 203°F (95°C) Cold water chilling to 33°F (0°C)
- Cook-in-bag or loose such as diced potatoes and other starches
- Fresh water rinse option on exit for starch applications
- Eliminates double handling and heating
Specs
Mini Aquaflow Pasteurizer Specs:
- Dimensions: 5.42 ft (1.65 m) W x 18.33 ft (5.59 m) L x 6 ft (1.83 m) H
- Belt width: 40-in (1000 mm) W
- Capacity: 500 – 2,000 lbs (225 – 900 kg) per hour
Double-Zone Aquaflow Pasteurizer Specs:
- Dimensions: 7.58 ft (2.31 m) W x 28.83 ft (8.79 m) L x 10 ft (3.05 m) H
- Belt width: 56-in (1,400 mm) W
- Capacity: 1,000 – 3,000 lbs (450 – 1350 kg) per hour
Triple-Zone Aquaflow Pasteurizer Specs:
- Dimensions: 8.92 ft (2.72 m) W x 38.33 ft (11.68 m) L x 12.67 ft (3.86 m) H
- Belt width: 68-in (1,700 mm) W
- Capacity: 3,000 – 10,000 lbs (1,350 – 4,500 kg) per hour
