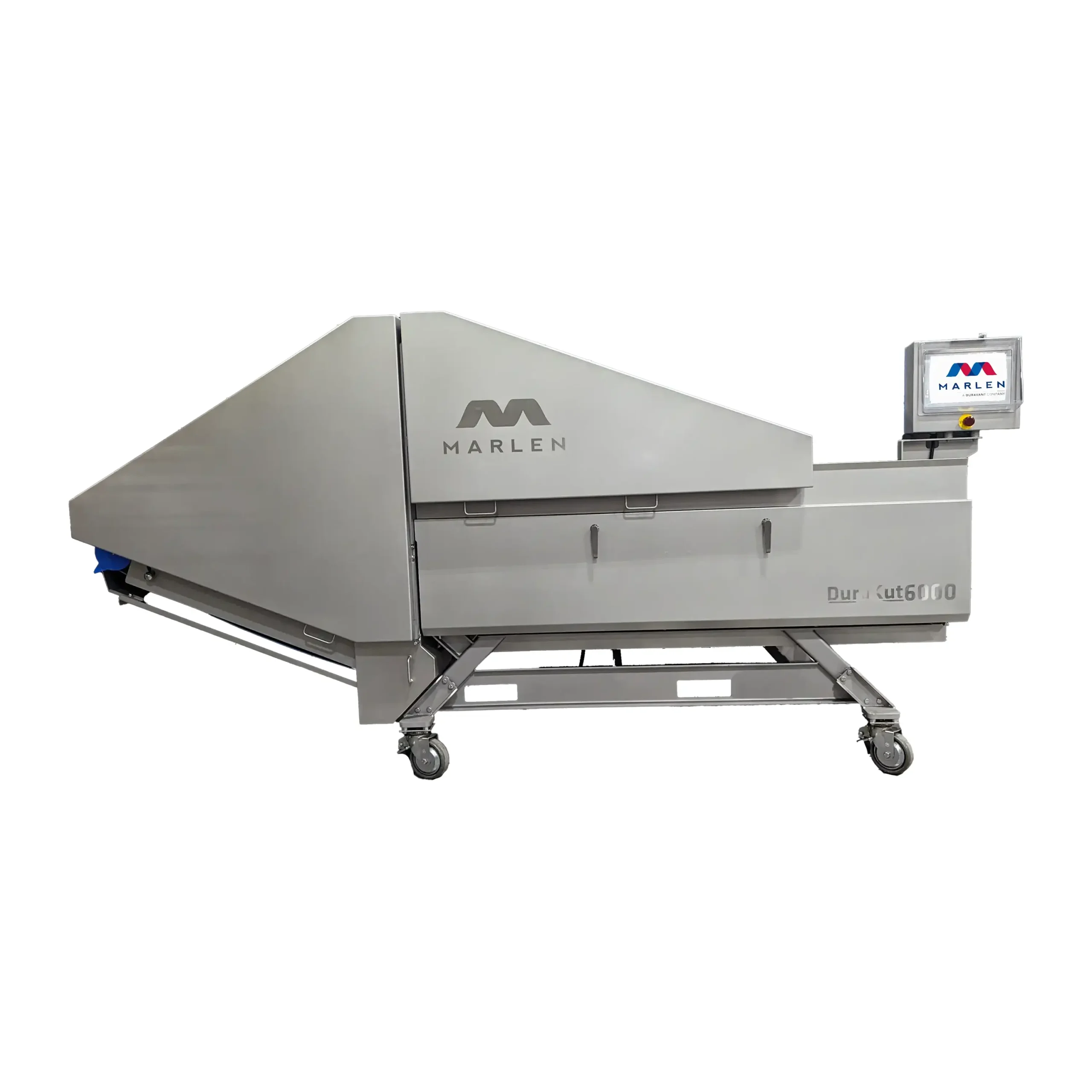

DuraKut™ 6000 2D VFD (or) Servo Dicer
Just like our AdvantEdge dicer series, our DuraKut™ series dicers are designed and built in the USA for complete cutting versatility of fresh, vacuum-tumbled, crust-frozen or cooked products into cubes or strips. Equipped with VFD or servo drives, the DuraKut 2D dicer’s powerful and precise indexing movements deliver the very best final product appearance. DuraKut’s robust durable design with tool-free disassembly, including removal of the conveyor belt and spiral knife, reduces changeover and sanitation tear-down times for different cut sizes. DuraKut frames are built to the latest sanitary standards with open stainless steel channels and no tubular framing. With continuous flow processing and high throughputs, DuraKut models are controlled via a user-friendly HMI with icon-based graphics for the most intuitive interface.
- Product Family: Slicers, Dicers
Featured Video
CircFood DuraKut 6000 2D VFD / Servo Meat Dicer Overview Video
Features
- Made in USA with centrally sourced parts, field service, and technical support
- VFD driven belts via drum motor (enclosed motor and gear drive)
- Optional product discharge belt conveys finished product directly to dump buggy or takeaway conveyor
- Proprietary spiral knife design reduces fines and product movement during and after slicing along with tool-free removal and installation
- 12.5-in (317.5mm) wide belt features tensionless belt take-up mechanism for easy belt installation and tool-free removal
- Handles product up to 5-in (127mm) in height at any length, without the need for pre-cutting. Dice or strip any cut size from .1181-in (3mm) up to 4-in (101mm).
- Positive belt motion with center drive tensionless belt prevents cracking due to over-tensioning
- Continuous flow processing design allows for smooth integration into any processing line. No need for batching
- Controlled via a user-friendly HMI with icon-based graphics for the most intuitive interface for multilingual workforces
- Open design and fewer parts reduce teardown, sanitation and reassembly time
- Gang knife cartridge can be easily mounted and removed with tool-free disassembly
- Hinged covers and door panels with no external hinges
- EWON Wi-Fi capable (standard on servo)
- CE Compliant
- Optional horizontal slicing attachment for 3D cuts
Specs
Belt Width: 12.5″ (317.5mm) available
Temperature Range: 25°F ( -3°C) to fully cooked from the oven
Slicing Range: 1/8″ to 3″ (3.175mm to 76.2mm)
Capacity: Over 5,000 lbs (2,267kg) per hour
Maximum Belt Speed: 40 ft (12 m) per minute
Feed Opening: For product up to 5″ (127mm) in height (x) any length
Electrical Requirement: 3-Phase AC power; 240 / 380 / 415 / 480 voltages available
Industry Applications
Videos
CircFood DuraKut™ 6000 2D VFD / Servo Meat Dicer Video #2
CircFood DuraKut™ 6000 2D VFD / Servo Dicer/Slicer
CircFood DuraKut™ 6000 2D Dicer – Ergonomic Parts Cleaning Cart Video
CircFood DuraKut™ 6000 2D Dicer Overview/Demo
