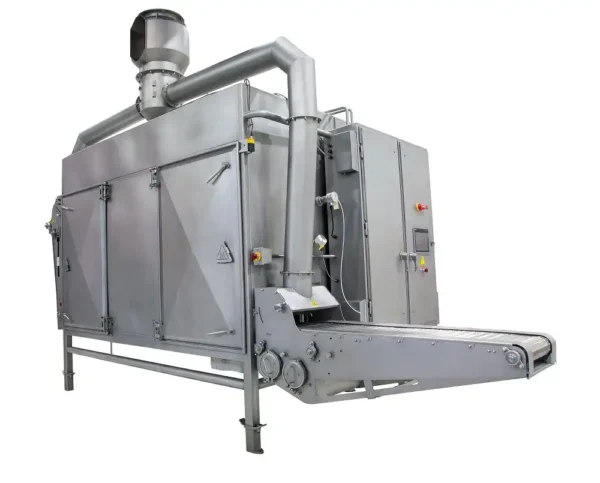

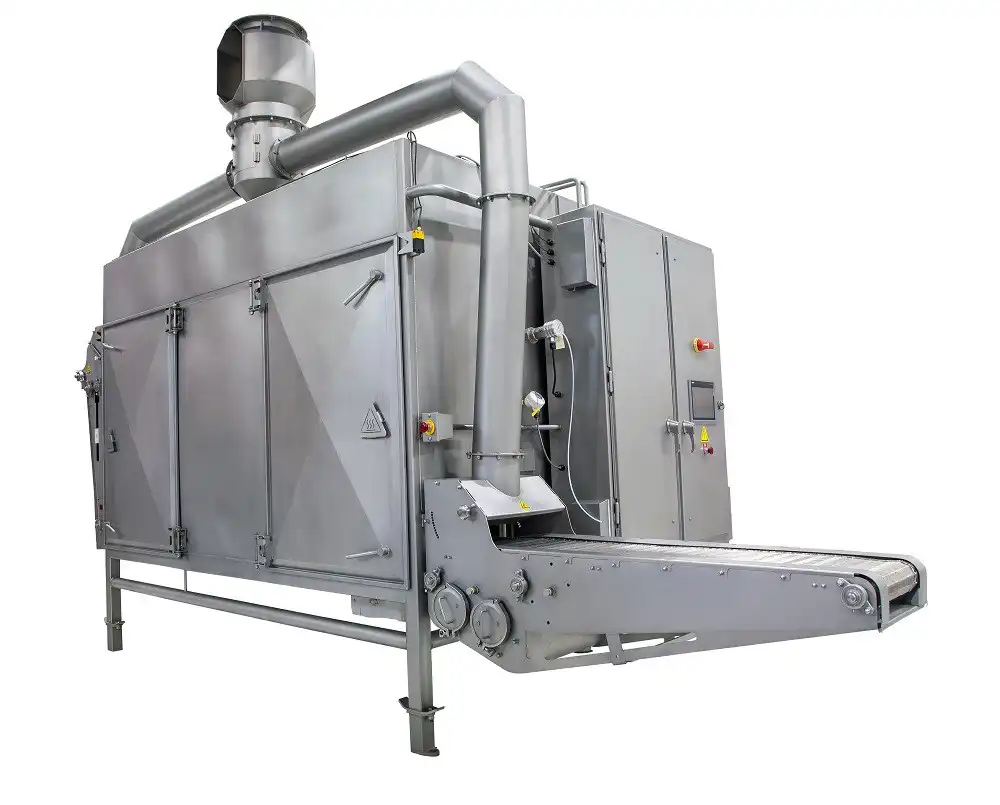

Mini Spiral Belt Pasteurizer
Our Mini Spiral Belt Pasteurizer is perfect for expanding operations or growing product lines. The Mini Spiral Pasteurizer gives growing processors access to high-level control of cross-contamination in an economical footprint.
- Product Family: Post-package Pasteurization,Ready Meal Pasteurization
Features
- Variables for unique recipe creation includes control of time, temperature, and steam
- Unique patented airflow maintains even temperatures across the belt
- Easy to use HMI with data traceability and ability to save hundreds of recipes
- Temperatures can reach 450°F (230°C)
- Gas and electric models available
- Standard available belt width includes 16-in (400mm) custom solutions available
- Capacity ranges and respective models reach from 225 lbs (100kg) / hr to 20,000 lbs (9,000 kgs) / hr
- Mirrored models available for modular growth to double capacities as your production requirements increase
- In-line belt wash and customizable recipe-driven CIP control included for effective cleaning
- EWON Wi-Fi module and ethernet connection included
- Manufactured and engineered in the USA with worldwide locations for parts, field service, and technical support
- Can be integrated into a complete cook line incorporating a flame grill and spiral chiller / freezer or installed as a stand-alone unit
- CE Compliant
Specs
Dimensions: 7.58 ft (2.31 m) W x 13.5 ft (4.11 m) L x 10.33 ft (3.15 m) H
Belt width: 16-in (400 mm) W
Tiers: 5 to 10 available
Capacity: 750 – 1,800 lbs (350 – 800 kg) per hour
