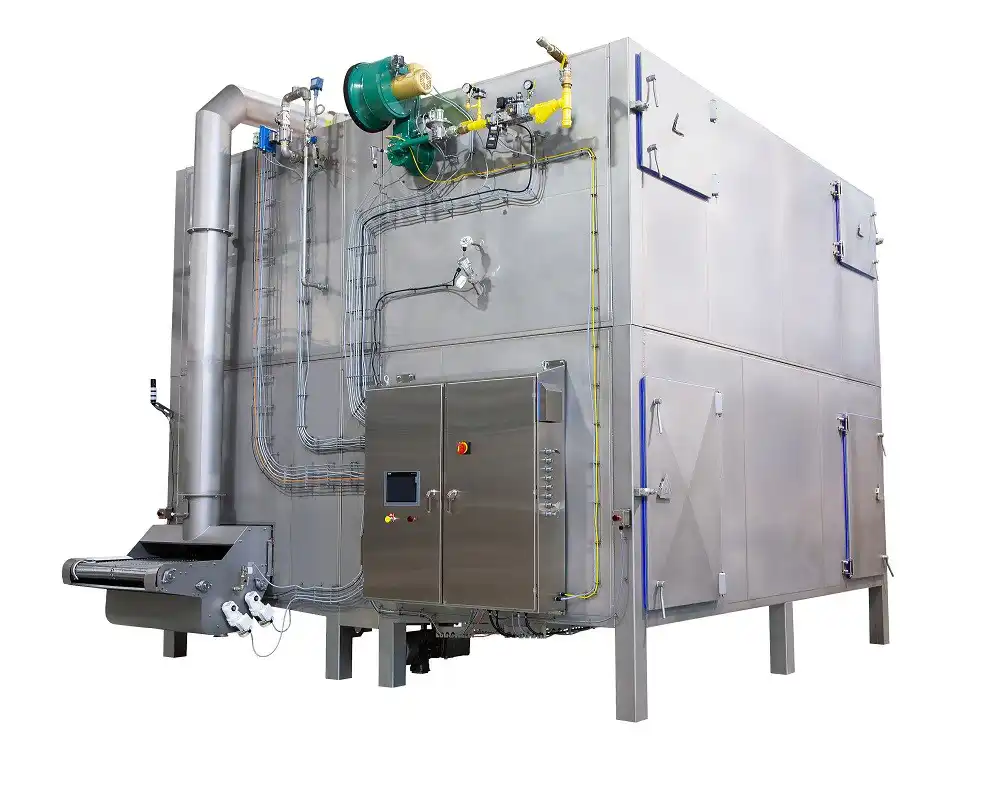

XL Spiral Belt Pasteurizer
Designed for the largest processing operations, our XL Spiral Pasteurizer provides high-throughput post-process, post-packaging pasteurization of ready meals, pouches, bowls, and other RTE products. With a capacity of up to 20,000 lbs/hour, this pasteurizer will help you maximize both food safety and productivity.
- Product Family: Post-package Pasteurization,Ready Meal Pasteurization
Features
- Variables for unique recipe creation includes control of time, temperature, and steam
- Easy to use HMI with data traceability and ability to save hundreds of recipes
- Temperatures can reach 450°F (230°C)
- Gas and electric models available
- Standard available belt width includes 40-in (1000mm) – custom solutions available
- Capacity ranges and respective models reach from 225 lbs (100kg) / hr to 20,000 lbs (9,000 kgs) / hr
- Mirrored models available for modular growth to double capacities as your production requirements increase
- In-line belt wash and customizable recipe-driven CIP control included for effective cleaning
- EWON Wi-Fi module and ethernet connection included
- Manufactured and engineered in the USA with worldwide locations for parts, field service, and technical support
- Can be integrated into a complete cook line incorporating a flame grill and spiral chiller / freezer or installed as a stand-alone unit
- CE Compliant
Specs
Dimensions:: 20.5’ (6.25 m) wide x 26.21’ (7.99 m) long x 19.75’ (6.02 m) tall
Belt width: 40” (1,000 mm)
Tiers: 10 to 15 available
Capacity: Up to 20,000 lbs (9,072 kg) per hour
